Star Pickets – Australian Style Y Pickets for Livestock Fencing

Sinodiamond® star-shaped pickets, a type of Australian style Y post without teeth, features three-pointed star shaped cross section. The tapered ends make it easy to be installed and the plain head is engineered for easy hammering the post into ground. Due to high quality and stability, star-shaped pickets are popular with most Australians, New Zealanders.

Y post or Y picket is the common name in Australia, New Zealand, Israel, South Africa, Ireland and Philippines.

In Australia and New Zealand, the star-shaped picket is also called, Y pickets, silver pickets, black pickets or filed fence steel post.

Several black bitumen Y posts on the metal pallet.
YP-01: Star-shaped pickets without teeth.
A galvanized star picket on the ground with detail of head part
YP-02: Head part of galvanized star-shaped picket.
A black bitumen star picket on the ground with detail of head part
YP-03: Head part of Black bitumen star-shaped picket.
A galvanized star picket on the ground with detail of end part
YP-04: End part of galvanized star-shaped picket.
A black bitumen star picket on the ground with detail of end part
YP-05: End part of Black bitumen star-shaped picket.

This video shows the production process of Y post.

Applications of star-shaped pickets:

  • Secure livestock and keep the predators out.
  • Support the fences of express highways and roads.
  • Hold the almost metal fences such as farm fences, vineyard fence, garden fences, field fence.
  • Can be adapted to all wire mesh barriers.

Advantages:

  • Consistent holds for easy attachment to fencing wires.
  • High durability for not chipping, bending.
  • Anti-rust material coated surface.
  • Prevent the damage from termites.
  • Withstand the extreme weather and high wind forces.
  • Easy to install, with a low cost.
  • Long life time.

Details of star-shaped pickets:

  • Shape: three-pointed star shaped cross section, without teeth.
  • Material: low carbon steel, rail steel, etc.
  • Surface: black bitumen coated, galvanized, PVC coated, baked enamel painted, etc.
  • Thickness: 2 mm – 6 mm depends on your requirements.
  • Package: 10 pieces/bundle, 50 bundles/pallet.
A piece of fixed knot field fence is fastened by the clips to the star picket.
YP-06: Sinodiamond® star-shaped pickets for field fence fastening.
A piece of green color Euro fence is fastened onto star picket by clips.
YP-07: Sinodiamond® star-shaped pickets for Euro fence fastening.
Specifications of star-shaped pickets (Y pickets)
Length (m) 0.45 0.60 0.90 1.35 1.50 1.65 1.80 2.10 2.40
Specification Pieces/ton
1.58 kg/m 1406 1054 703 468 421 386 351 301 263
1.86 kg/m 1195 896 597 398 358 326 299 256 224
1.9 kg/m 1170 877 585 390 351 319 292 251 219
2.04 kg/m 1089 817 545 363 326 297 272 233 204
Several bundles of black bitumen coated Y post on the ground.
YP-08: Y post is commonly supplied in bundles.

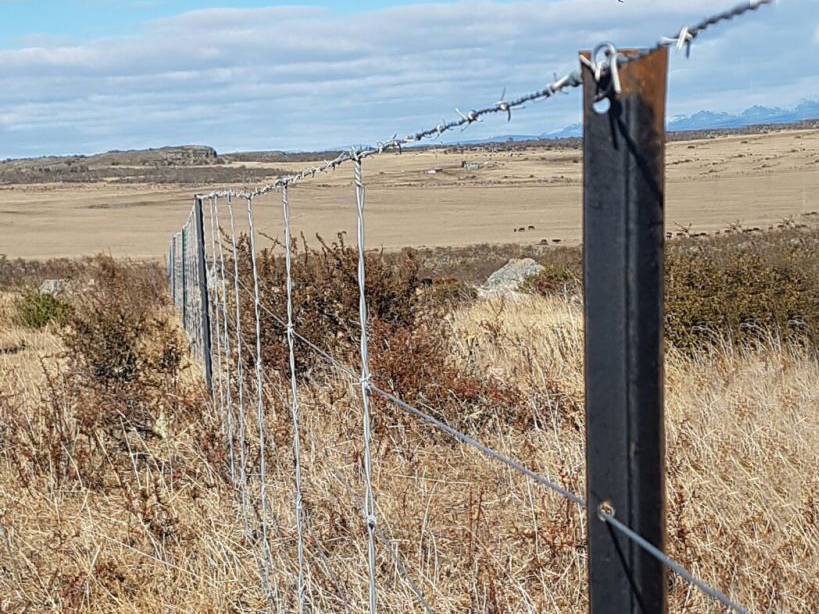

Barbed wire fences are fixed by Y post.
YP-09: Y post is commonly used to secure barbed wire fences outdoors.
Star pickets and Seven lines of steel wires are installed around the horse farm.
YP-10: Sinodiamond® star-shaped pickets are used for rearing horse.
Star pickets and cattle fence on the grassland and a cattle in it.
YP-11: Sinodiamond® star-shaped pickets are used for rearing cattle.
