Barbed Wire Protects Livestock and Plants

Barbed wire, twisted by purely automatic barbed wire machine, is a type of steel wire fence constructed with sharp edges or points arranged at intervals along the strands. It is also known as steel barbed wire or metallic coated steel barbed wire. As a kind of fence, it is a product for isolation and protection. Due to its high strength an anti-corrosion traits, barbed wire is widely used in farms, orchards and the cultivation of horses or cows.

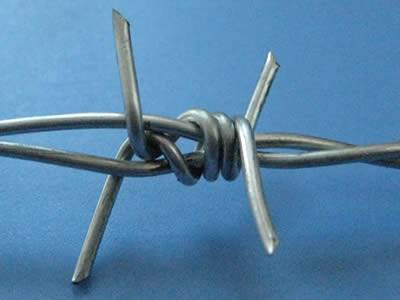

There is a traditional twist barbed wire under a blue background.
BW-01: Traditional twist barbed wire is a good defensive tool to be used in farms or plantations.
There is a single twist barbed wire with two long barbs.
BW-02: Hot dipped galvanized barbed wire can protect livestock such as horses, cows.
There is a double twist barbed wire.
BW-09: Galvanized barbed wire has a higher strength.
There is a PVC coated barbed wire.
BW-04: PVC coated barbed wire can resist corrosion and it is durable.

Specifications of barbed wire:

  • Materials: quality low carbon steel wire
  • Surface treatment: aluminium, zinc, zinc-5% aluminium - mischmetal alloy coated, PVC coated, hot dip galvanized
  • Twist type: single twist, double twist, traditional twist.
  • Barb length: minimum 9.5 mm.
  • Breaking strength: 950 lbf (4230 N).
  • PVC Color: blue, green, yellow or customized.
Table 1 Standard Sizes and Constructions for Barbed Wire
Design Number Size, Steel Wire Gage Nominal Diameter of Coated
Wire, in. (mm)
Number of Barb
Points
Spacing of Barbs,
in. (mm)
Diameter of Barbs, Steel
Wire Gage
Shape of Barbs
12-4-3-14R 12.5 0.099 (2.51) 4 3 (76) 14 Round
12-4-3-12R 12.5 0.099 (2.51) 4 3 (76) 12 Round
12-2-4-12F 12.5 0.099 (2.51) 2 4 (102) 12.5 Flat
12-2-4-13F 12.5 0.099 (2.51) 2 4 (102) 13 Flat
12-2-4-14R 12.5 0.099 (2.51) 2 4 (102) 14 Round
12-2-5-12F 12.5 0.099 (2.51) 2 5 (127) 12.5  Flat
12-2-5-14R 12.5 0.099 (2.51) 2 5 (127) 14 Round
12-4-5-14H 12.5 0.099 (2.51) 4 5 (127) 14 Half-round
12-4-5-14R 12.5 0.099 (2.51) 4 5 (127) 14 Round
13-2-4-14R 13.5 0.086 (2.18) 2 4 (102) 14 Round
13-4-5-14R 13.5 0.086 (2.18) 4 5 (127) 14 Round
14-2-4-14F 14 0.080 (2.03) 2 4 (102) 14 Flat
14-2-5-14F 14 0.080 (2.03) 2 5 (127) 14 Flat
14-4-3-14F 14 0.080 (2.03) 4 3 (76) 14 Flat
14-4-5-14F 14 0.080 (2.03) 4 5 (127) 14 Flat
14-2-5-14R 14 0.080 (2.03) 2 5 (127) 14 Round
14-4-5-14R 14 0.080 (2.03) 4 5 (127) 14 Round
15-2-5-13F 15.5 0.067 (1.70) 2 5 (127) 13.75 Flat
15-2-5-14R 15.5 0.067 (1.70) 2 5 (127) 14 Round
15-4-5-16R 15.5 0.067 (1.70) 4 5 (127) 16.5 Round
15-4-3-16R 15.5 0.067 (1.70) 4 3 (76) 16.5 Round

Features of barbed wire:

  • High strength and rigidity.
  • Sharp cusps.
  • Anti-corrosion.
  • Easy to install.
  • Eco friendly and cost effective.
  • Beautiful appearance.

Applications of barbed wire:

  • Used in fence of plantation, grass boundary.
  • Used in ranch and livestock farm.
  • Used in agriculture and animal husbandry.
Under the blue sky, two barbed wires are fixed on several wooden posts.
BW-05: The material of the post can be customized.
Some metal posts support the barbed wires.
BW-06: Galvanized steel barbed wires with Yposts and wooden posts are durable and can be used for a long time.
There is a barbed wire among some sunflowers.
BW-07: Barbed wire is widely used in gardens to protect flowers such as sunflowers.
Two vines grow along the barbed wire.
BW-08: Not only protect plants, barbed wire can also act as a support for plant to grow.
There are several cows live inside the barbed wire fence.
BW-09: The barbed wires can protect livestock and prevent them from wandering away.
A tiger is caught in barbed wire.
BW-10: Barbed wires can keep dangerous animals away so as to make live stock safe.

Package:

In spools or in pallets.

There are several barbed wires packed in spools.
BW-11: Barbed wires are very popular in pastures and farms.
Several spools of barbed wires are packed in pallets.
BW-12: Packed in pallets can reduce damage from outside.
